Engine power: 22–25 HP (Zongshen GB680 engine) usaatspower.com
Motor speed: 3600 rpm usaatspower.com
Cooling: Air‑cooled usawolverine.com
Engine displacement/cylinders: 639 cc / 2 cylinders usawolverine.com
Performance
Lifting capacity: 840 lbs (some listings also note 770 lbs standard) usawolverine.com
Dumping height: 60 in usawolverine.com
Discharge distance: 17.8 in usaatspower.com
Total cycle time: 9 seconds usawolverine.com
Travel speed: 0–5 km/h proequip.com.au
Dimensions
Operating height: 2450 mm proequip.com.au
Height to bucket hinge pin: 1870 mm proequip.com.au
Overall length (with bucket): 2206 mm proequip.com.au
Overall width: 1050 mm (some listings show 1000 mm) proequip.com.au+1
Ground clearance: 150 mm proequip.com.au
Machine weight: 1000 kg proequip.com.au
Capacities
Fuel tank: 18.2 lbs usaatspower.com
Hydraulic oil tank: 20 qt usaatspower.com
Tank capacity (additional spec): 10 L proequip.com.au
Bucket & Tracks
Bucket volume: 0.12 m³ proequip.com.au
Bucket width: 1050 mm (or 1000 mm depending on model variant) proequip.com.au+1
Track width: 180 mm proequip.com.au
Hydraulic System
Working system pressure: 17 bar proequip.com.au
Flow required: 7 gpm usawolverine.com
Electrical
Electrical system: 12 V usaatspower.com
Summary

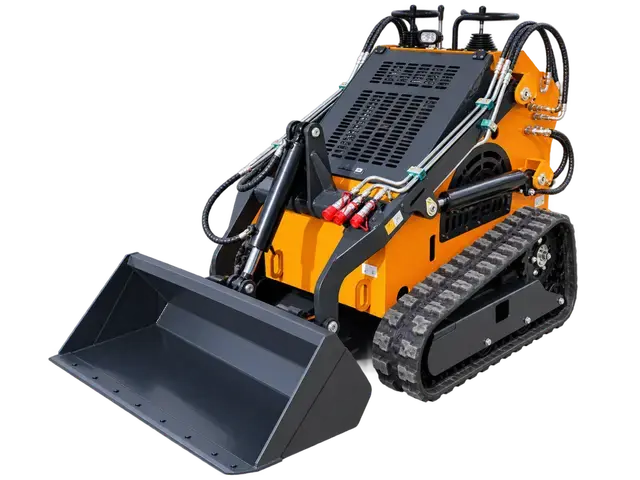

The ATS T460 is a compact mini skid steer with a 22–25 HP engine, strong 840 lb lift capacity, and versatile attachment compatibility, making it suitable for landscaping, construction, and material‑handling tasks.
